Model #:
DWHD770CFM
Color:
Stainless Steel
Star Sapphire®, Dishwasher, 24'', Masterpiece®, Stainless Steel
Star Sapphire®, Dishwasher, 24'', Masterpiece®, Stainless Steel
Price
Everyday Price
$2,749.00
Sale Price
$2,499.00
Total Savings
$250.00
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 23 9/16
Height: 33 14/16
Depth: 23 11/16
Color
Stainless Steel
Also Comes In
Model #:
DWHD770CFP
Stainless Steel
$2,499.00
Model #:
DWHD770CPR
Custom Panel Ready
$2,499.00
Features
StarDry™
- Uses Zeolite technology to absorb moisture, and dry containers with hard-to-reach crevices. No other dishwasher dries better.
- enjoy a signature cleaning cycle at 42 dBA, perfect for after-dinner conversation.
- third rack provides additional capacity and the ultimate flexibility in cleaning your culinary kitchen tools.
- shines a countdown of the remaining time of the cycle on the floor.
- monitor and control your appliance remotely, via the Home Connect app, works with smart home devices and services like Amazon Alexa.
Specification
| General | |
| Third Rack | 3rd Rack 3.0 |
| Product group | Dishwasher |
| Brand | Thermador |
| SKU | DWHD770CFM |
| Internal article number | DWHD770CFM |
| EAN code | 825225967118 |
| Construction type | Built-in |
| Installation type | Built-under |
| Column installation | Yes |
| Type of control | Electronic |
| Type of control | Display;push-button;touch buttons |
| Removable work top | No |
| Door decor panel | Not possible |
| Tub material | Stainless steel |
| Hidden heating element | Yes |
| Watts (W) | 1440 |
| Current (A) | 12 |
| ChildLock | No |
| Volts (V) | 120 |
| Frequency (Hz) | 60 |
| Power cord length (cm) | 170.0 |
| Plug type | Nema5-15P |
| Length outlet hose (cm) | 230 |
| Adjustable plinth | No |
| Height of removable worktop (mm) | 0 |
| Power Cord Length | 67'' |
| Maximum adjustability feet (mm) | 30 |
| Depth with open door 90 degree (mm) | 1231 |
| Height of the packed product (mm) | 940 |
| Width of the packed product (mm) | 670 |
| Depth of the packed product (mm) | 710 |
| Minimum height for installation (mm) | 860 |
| Maximum height for installation (mm) | 890 |
| Minimum width for installation (mm) | 610 |
| Energy Efficiency Class | Tier 1 |
| Maximum width for installation (mm) | 618 |
| Depth for installation (mm) | 610 |
| Total annual energy consumption (kWh) | 269 |
| Net weight (kg) | 45.3 |
| Gross weight (kg) | 49.5 |
| Energy Star® qualified | No |
| Five-level wash | Yes |
| Reference programme | Eco |
| Number of place settings | 16 |
| Silence level (dBA) | 42 |
| Home Connect Connectivity | Wi-Fi |
| Home Connect | Remote Monitoring and Control |
| Enter the minimum temperature for wash (°C) | 45 |
| Enter the maximum temperature for wash (°C) | 71 |
| Water softener | Yes |
| Maximum accepted water hardness | [50°DH] |
| Maximum temperature for water intake (°C) | 60 |
| Drying system | Condensation Dry , Zeolite |
| Length outlet hose | 90 1/2'' |
| Start delay options | Continuous |
| Stop delay or a start delay option | Start |
| Start delay time max (h) | 24 |
| Required cutout size (HxWxD) | 33 7/8'' x 24'' x 24'' |
| Single basket washing | No possibility |
| Status indicator | End of program audible, Rem. time proj. white, Sanitized LED US, Water inlet |
| Number of wash cycles | 7 |
| Digital countdown indicator | Yes |
| End of cycle sound | End of program audible |
| Salt light indicator | Yes |
| Rinse aid light indicator | Yes |
| List of programmes | 1 Hour, Auto, Hand Wash, Intensive, Normal, Pre-rinse, Quick Wash 45°C |
| Number of options | 7 |
| Cycle Options | Half Load, HygienePlus, Intensive Zone, Remote Start, VarioSpeed, Zeo Dry |
| Automatic programmes | Yes |
| Safety device | Single Water Protection 24h |
| Interior light | Yes |
| Adjustable upper rack | Rackmatic 3-stage |
| Basket with handle | Bottom basket, Top basket |
| Software update | No |
| Available languages display | English |
| UPC code | 825225967118 |
| Additional Image 1 | https://media3.bsh-group.com/Product_Shots/3000x3000/21071248_DWHD770CFM-Thermador-Dish-Slightly-Open-with-3rd-Rack-Pulled-Out_def.jpg |

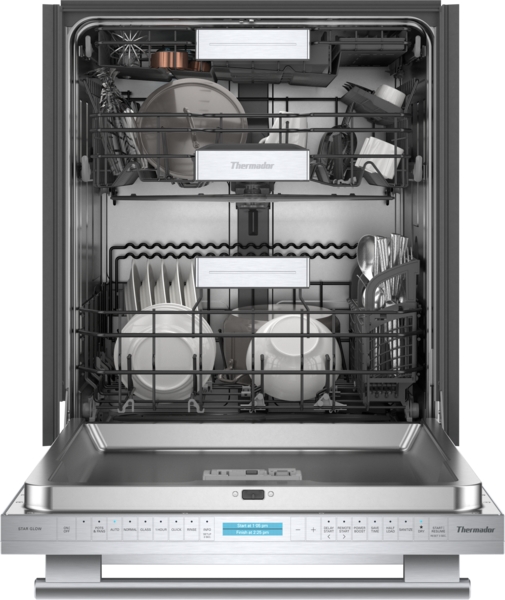

| Additional Image 2 | https://media3.bsh-group.com/Product_Shots/3000x3000/21071240_DWHD770CFM-Thermador-Dish-Door-Open-and-Racks-pushed-in-with-Styling_def.jpg |

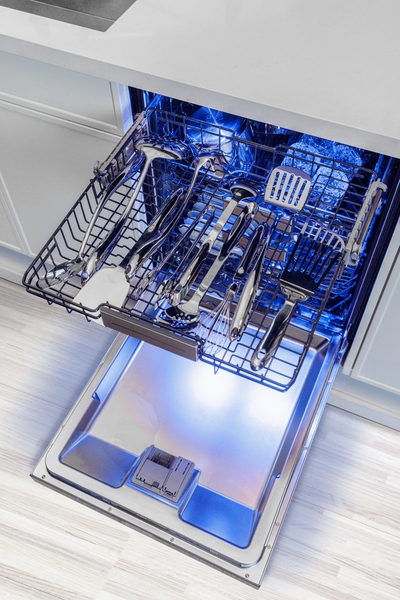

| Additional Image 3 | https://media3.bsh-group.com/Product_Shots/3000x3000/23056809_DWHD770CFM-Thermador-Dish-open-styled-third-rack_def.jpg |

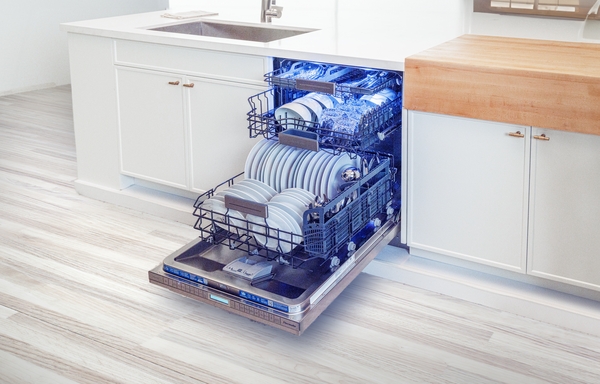

| Additional Image 4 | https://media3.bsh-group.com/Product_Shots/3000x3000/23056815_DWHD770CFM-Thermador-Dish-open-styled-wide_def.jpg |

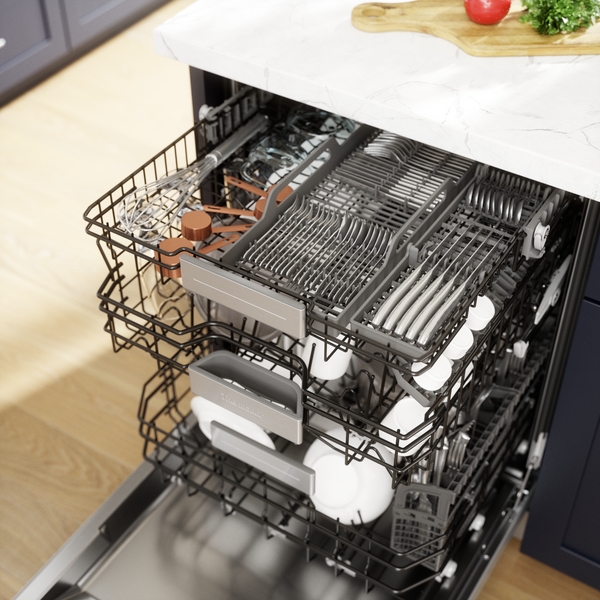

| Additional Image 5 | https://media3.bsh-group.com/Product_Shots/3000x3000/23229696_Thermador-DWHD770CFM-dishwasher-3rd-rack-styled_def.jpg |

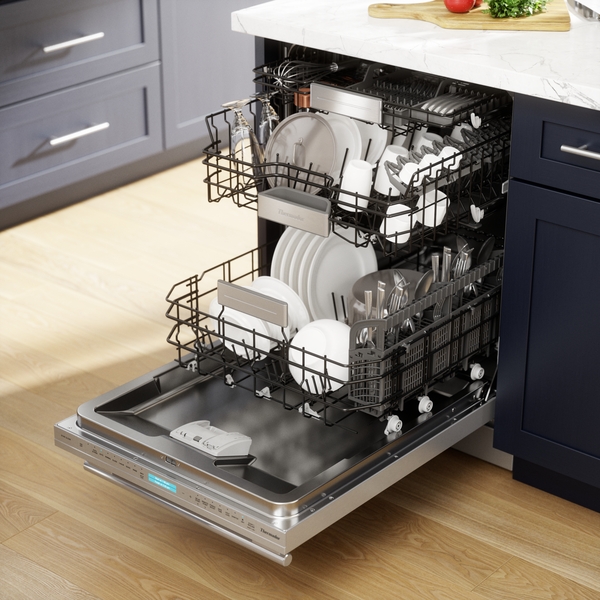

| Additional Image 6 | https://media3.bsh-group.com/Product_Shots/3000x3000/23229691_Thermador-DWHD770CFM-dishwasher-open-door-styled_def.jpg |

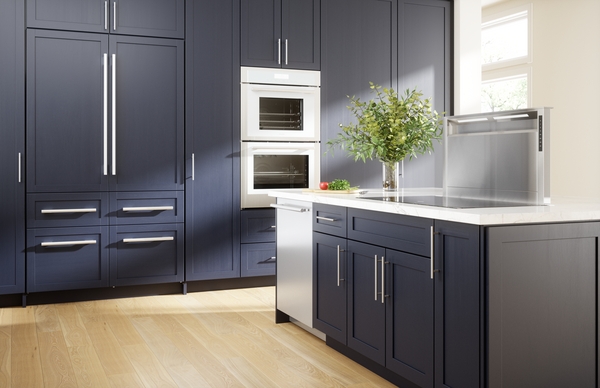

| Additional Image 7 | https://media3.bsh-group.com/Product_Shots/3000x3000/23229700_Thermador-DWHD770CFM-slate-blue-cabinets-contemporary-transitional-kitchen_def.jpg |
| Total annual water consumption | 624 |
| Water Usage per Cycle | 3.5 |
| Net weight | 100.000 |
Documentation
From the Manufacturer
Disclosures
Proposition 65 Warning for California ResidentsCancer and Reproductive Harm - P65Warnings.ca.gov
Features
StarDry™
- Uses Zeolite technology to absorb moisture, and dry containers with hard-to-reach crevices. No other dishwasher dries better.
- enjoy a signature cleaning cycle at 42 dBA, perfect for after-dinner conversation.
- third rack provides additional capacity and the ultimate flexibility in cleaning your culinary kitchen tools.
- shines a countdown of the remaining time of the cycle on the floor.
- monitor and control your appliance remotely, via the Home Connect app, works with smart home devices and services like Amazon Alexa.
